Magnetic Encoder Ring Replacement: RLS Reference Sizes and Custom Targets
Evaluate an encoder ring replacement by model
A replacement target must be validated with the exact installed readhead. Matching bore and outside diameter does not establish identical magnetic coding, accuracy or startup behavior.
Provide the original ring and readhead part numbers, mechanical drawing, track pattern, operating gap and required error limits. OTV Sensing can review a custom target and supply samples for system validation. The reference table below identifies comparison dimensions; it is not a universal compatibility guarantee.
Discuss a custom magnetic target or browse standard magnetic encoder rings.

OTV Sensing supplies magnetic targets for rotary encoders and reviews custom targets against the selected readhead and mechanical design. Replacement projects require both dimensional comparison and magnetic-system validation.
The reference sizes below help define a replacement enquiry. Confirm the exact ring and readhead part numbers before selecting an OTV target for testing.

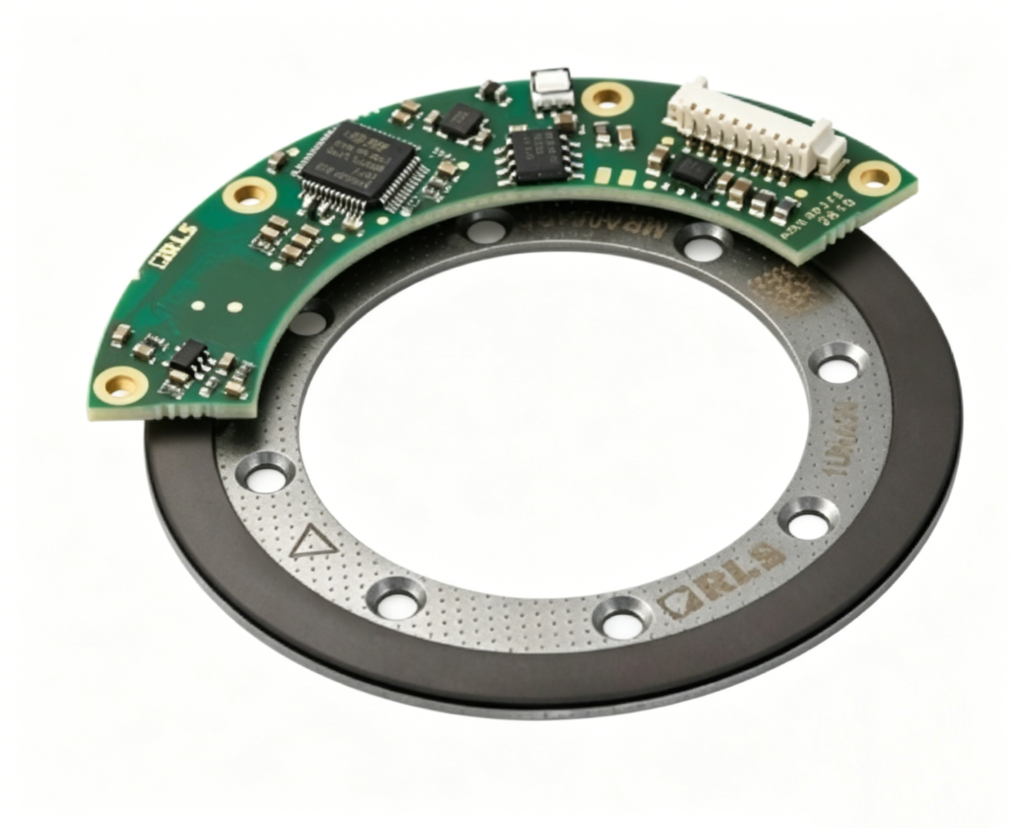

1. Overview of AksIM‑2 Encoders and MRA Magnetic Rings

The AksIM‑2 is a high‑performance, off‑axis absolute rotary encoder developed by RLS. Its key specifications are:
Type: Off‑axis absolute rotary encoder (non‑contact, low profile)
Resolution: 17 to 20 bits (up to 1,048,576 counts per revolution)
System accuracy (after self‑calibration): ±0.004° to ±0.020°, depending on the ring size
Sampling frequency: 18 kHz; max refresh rate 54 kHz
Communication interfaces: BiSS C, UART (asynchronous serial), SPI, PWM, SSI
Supply voltage: 4.5 V to 5.5 V
Operating temperature: –40°C to +105°C
Shock & vibration: 100 g shock, 80 g vibration
AksIM‑2 uses an axially magnetized multipole magnetic ring (the MRA series), which consists of a metal carrier bonded with a flexible magnetic rubber. Different readhead models (MB022, MB029, MB039, MB049, MB053, MB064, MB080) pair with rings of specific inner diameter (ID), outer diameter (OD), thickness, and mounting style.
For example, the MRA022HP ring matches the MB022 readhead, with an ID of 8 mm and OD of 21.5 mm. The MRA080BC ring matches the MB080 readhead, with an ID of 55 mm, OD of 80 mm, and thickness of 2.0 mm.
The nominal installation gap (ride height) between the readhead and the ring surface is 0.25 mm ± 0.20 mm for smaller sizes, or 0.2 mm ± 0.15 mm for larger ones. The ring surface must not be exposed to external magnetic fields exceeding 50 mT, as this could cause permanent damage.
2. Compatible Rings for the AksIM‑4 Series – Large Hollow Shafts & 21‑Bit Resolution

For applications that require a large through‑hole – such as large radar gimbals or medical imaging equipment – RLS introduced the AksIM‑4 series. Ask OTV Sensing to review the exact large-bore ring and readhead before specifying a replacement target.
Ring models: MRA115 (90 mm ID) and MRA150 (125 mm ID)
Resolution: Supports up to 21‑bit binary readout
Dynamic performance: Maximum speed 3,150 rpm, with excellent shock resistance (100 g)
3. Core Advantages of OTV Sensing Replacement Rings
3.1 Mechanical Fit and Magnetic Compatibility
Review the following parameters against the exact ring and readhead before selecting a replacement:
Outer diameter, inner diameter, and thickness
Mounting hole positions and diameters (countersunk or through holes)
Number of pole pairs and magnetization pattern (axial multipole, with identical pole pitch)
Installation gap requirements (0.2 mm to 0.45 mm)
Validate mechanical fit, magnetic signal quality, calibration and power-cycle repeatability before replacing a ring in the machine. Any firmware or calibration requirements depend on the selected readhead.
3.2 Verify Performance in the Complete System
Target manufacturing and magnetization must be assessed against the selected readhead. Compare pole deviation, field strength and assembled-system error under the intended mounting and temperature conditions.

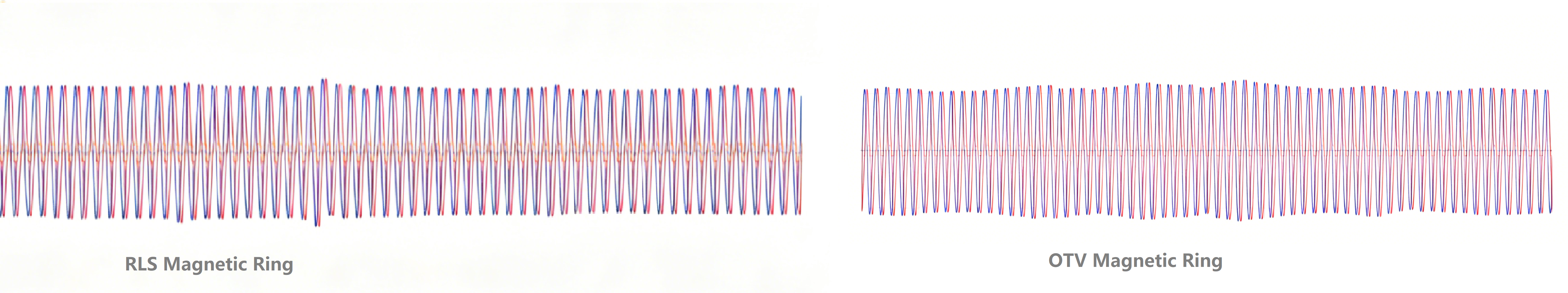

Evaluate individual pole deviation, accumulated deviation and full-revolution system error. Agree acceptance limits for the specific ring and readhead combination before production.

3.3 Reference Dimensions for Target Selection
The table below is a dimensional cross-reference for engineering review. The listed OTV target candidates require confirmation of magnetic coding, readhead compatibility and validation results.
| RLS Ring Model | Readhead | OTV Target Candidate | ID/OD/Thickness (mm) | Primary Mounting |
|---|---|---|---|---|
| MRA022HP | MB022 | OTV‑MR022 | 8 / 21.5 / 5.4 | Press‑fit (P) |
| MRA029BC | MB029 | OTV‑MR029C | 10 / 29 / 2.0 | Countersunk (C) |
| MRA029GP | MB029 | OTV‑MR029G | 12.7 / 29 / 7.0 | Glue (G) |
| MRA039BC | MB039 | OTV‑MR039C | 20 / 39 / 2.0 | Countersunk (C) |
| MRA049BC | MB049 | OTV‑MR049C | 25 / 49 / 2.0 | Countersunk (C) |
| MRA049AF | MB049 | OTV‑MR049F | 25 / 49 / 3.9 | Flat‑bottom counterbore (F) |
| MRA049BG | MB049 | OTV‑MR049G | 34 / 49 / 2.0 | Glue (G) |
| MRA053BC | MB053 | OTV‑MR053C | 30 / 53 / 2.0 | Countersunk (C) |
| MRA053BG | MB053 | OTV‑MR053G | 40 / 53 / 2.0 | Glue (G) |
| MRA064BC | MB064 | OTV‑MR064C | 40 / 64 / 2.0 | Countersunk (C) |
| MRA064BG | MB064 | OTV‑MR064G | 51 / 64 / 2.0 | Glue (G) |
| MRA080BC | MB080 | OTV‑MR080C | 55 / 80 / 2.0 | Countersunk (C) |
| MRA080AF | MB080 | OTV‑MR080F | 55 / 80 / 3.9 | Flat‑bottom counterbore (F) |
| MRA080BG | MB080 | OTV‑MR080G | 64 / 80 / 2.0 | Glue (G) |
| MRA080DF | MB080 | OTV‑MR080DF | 68 / 95 / 4.9 | Flat‑bottom counterbore (large OD) |
Note: OTV suffix C = countersunk, F = flat‑bottom counterbore, G = glue‑mount, P = press‑fit.
3.4 Deep Customization – More Than Just Replacement
Our core strength also lies in flexible manufacturing. If you need non‑standard dimensions, special numbers of pole pairs, different mounting styles, or specific materials, we can respond quickly.
Customizable parameters include:
Dimensions: ID from 5 mm to 150 mm, OD up to 200 mm, thickness adjustable from 1.5 mm to 10 mm.
Number of pole pairs: From 8 to 128 pole pairs (cycles per revolution), meeting various resolution requirements.
Mounting styles: Countersunk (C), flat‑bottom counterbore (F), glue‑mount (G), press‑fit (P), screw‑mount (S), snap‑ring (R).
Carrier materials: Stainless steel, aluminum alloy, or engineering plastic.
Zero‑position marking: Engraving, laser marking, or special magnetic feature.
Special environments: Oil‑resistant or chemical‑resistant coatings available.

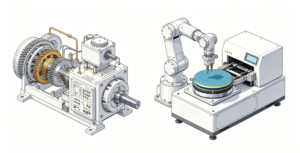

4. Applications & Customer Value

Typical applications include:
Collaborative robot joints (absolute feedback with AksIM‑2)
Precision rotary tables and direct‑drive motors
Medical equipment (CT scanners, surgical robots)
Aerospace servo systems
Semiconductor equipment (wafer handling)
Engineering and supply considerations:
Project cost: request a quotation based on the confirmed drawing, validation scope and quantity.
Lead times: custom samples 2 weeks; volume production 4 weeks. Confirm the project schedule after drawing approval.
Customization: A flexible solution when standard products do not meet your application requirements.
- Chip application experience: We have many years of product development experience in sensing applications based on Hall and magnetoresistive principles, and are well-versed in the requirements of mainstream chips such as iC-Haus ic MU series.
We invite you to contact us to co‑develop the optimal magnetic ring solution for your encoder system.
Appendix: Full Parameter Table for RLS AksIM‑2 Encoders & MRA Rings (Reference)
| Readhead | Matching Ring | ID (mm) | OD (mm) | Thickness (mm) | Moment of Inertia (kg·mm²) | Max Speed (rpm) |
|---|---|---|---|---|---|---|
| MB022 | MRA022HP | 8 | 21.5 | 5.4 | 0.36 | 10,000 |
| MB029 | MRA029BC | 10 | 29 | 2.0 | 0.75 | 10,000 |
| MB029 | MRA029GP | 12.7 | 29 | 7.0 | 1.0 | 10,000 |
| MB039 | MRA039BC | 20 | 39 | 2.0 | 2.3 | 10,000 |
| MB049 | MRA049BC | 25 | 49 | 2.0 | 5.5 | 9,500 |
| MB049 | MRA049AF | 25 | 49 | 3.9 | 13 | 9,500 |
| MB049 | MRA049BG | 34 | 49 | 2.0 | 4.8 | 9,500 |
| MB053 | MRA053BC | 30 | 53 | 2.0 | 7.4 | 7,500 |
| MB053 | MRA053BG | 40 | 53 | 2.0 | 5.9 | 7,500 |
| MB064 | MRA064BC | 40 | 64 | 2.0 | 15 | 6,000 |
| MB064 | MRA064BG | 51 | 64 | 2.0 | 11.4 | 6,000 |
| MB080 | MRA080BC | 55 | 80 | 2.0 | 32 | 4,700 |
| MB080 | MRA080AF | 55 | 80 | 3.9 | 74 | 4,700 |
| MB080 | MRA080BG | 64 | 80 | 2.0 | 12.8 | 4,700 |
| MB080 | MRA080DF | 68 | 95 | 4.9 | 114 | 4,700 |
Ring coding convention (for reference): Mounting type (C/F/G/P), Material (M/S), Accuracy grade (D/E), Zero marking (E/H/N). Ask OTV Sensing to review the required mounting and material combination.
FAQ
1.Can OTV Sensing magnetic rings directly replace my existing RLS AksIM‑2 or AksIM‑4 encoder rings?
Compatibility is evaluated for the exact ring and readhead. Check dimensions, mounting, magnetic coding, number of pole pairs and operating gap, then validate accuracy and startup behavior in the assembled system.
2.Will switching to OTV Sensing rings affect encoder accuracy or system performance?
Equivalent system performance must be demonstrated by testing the selected ring and readhead. We use high‑quality ferrite composite rubber and precision magnetization to achieve uniform field strength and tight pole‑width tolerances.
3.What is the standard MOQ for your magnetic rings?
We are flexible to discuss volume-based adjustments for prototype or trial orders.
4.Can you produce custom desgin samples before full production? Is there a charge?
Yes, we can provide custom designsamples for validation. Samples are typically charged at a nominal fee to cover material and setup costs. Lead time for sample building is generally 2 weeks after design confirmation.
5.What is the typical lead time for standard magnetic ring orders?
Volume production lead time is 4 weeks after design and order confirmation. Confirm stock availability separately for a standard item.
6.Can you customize magnetic rings for non‑standard dimensions, pole pairs, or special mounting requirements?
Yes,we fully support customization for parameters such as inner/outer diameter, mounting hole positions, thickness, and magnetic properties to meet specific application needs.
