Absolute readhead + scale systems

Absolute Magnetic Linear Encoders

Compare complete absolute magnetic readhead-and-scale systems by travel, resolution, mounting gap and controller interface.

  • Resolution down to 0.1 µm with AL200
  • Travel up to 82 m with AMG5000
  • SSI and BiSS-C options, depending on model
OTV absolute magnetic linear encoder readhead and scale system

Specify the complete linear feedback system

Choose a matched readhead and magnetic scale, then check the electrical interface and mechanical installation together. Resolution is the smallest reported position step; it is not the same as system accuracy.

Travel and scale length

AL200: maximum effective travel 16,384 mm. AMG5000: maximum measuring travel 82 m. Confirm the physical scale length and end allowances for the selected assembly.

Accuracy and environment

State the required system error over the working travel, temperature range, speed and mounting arrangement. Use the model-specific table rather than combining best values from different models.

Controller integration

Confirm protocol, supply voltage, timing, connector and cable length. The order code must match the receiving controller.

Already have a readhead? Specify a magnetic linear scale or encoder tape. Comparing optical feedback? Review OTV-OPE optical linear encoders.

Choose by readhead size, travel, resolution and installation gap

Start with the mechanical travel and controller interface. Resolution, accuracy and repeatability are separate specifications; compare the selected model under its stated conditions.

Selection parameterAL200AMG5000AL500AL228
ResolutionDown to 0.1 µm1 µm1 µm0.1 / 0.5 / 1 µm
Maximum effective travel16.384 m (16,384 mm)82 m1 m2 m
System accuracy±20 to ±40 µm/m, grade dependent≤50 µm, configuration dependentConfirm for selected configurationConfirm installed accuracy with selected SC20 scale
Repeatability<2 µm; <1 µm unidirectional≤±2.5 µm unidirectional at 1 µm resolution and 1.2 mm gap<2 µmWithin ±1 µm at 1 µm resolution and 0.3 mm gap
Operating gap0.2–0.6 mm; 0.3 mm recommended1.2 ±0.3 mm nominal; 0.2–2.0 mm allowable<1.6 mm; 1.2 mm recommended0.30 ±0.10 mm recommended; ≤0.8 mm maximum
Digital interfaceSSI / BiSS-C and model-specific optionsSSI / BiSS-C and model-specific optionsSSI / BiSS-C and model-specific optionsBiSS-C / SSI / ordered RS-485 protocol option
Readhead protectionIP67IP67IP67IP67

Get a Linear Encoder Recommendation

Tell us your measuring travel, accuracy and resolution needs, controller interface and mounting gap. If you are unsure which model fits, describe your application and we will help narrow the options.

Your name, email and a short message are enough to start. Technical details can follow during the engineering review.

Full model specifications

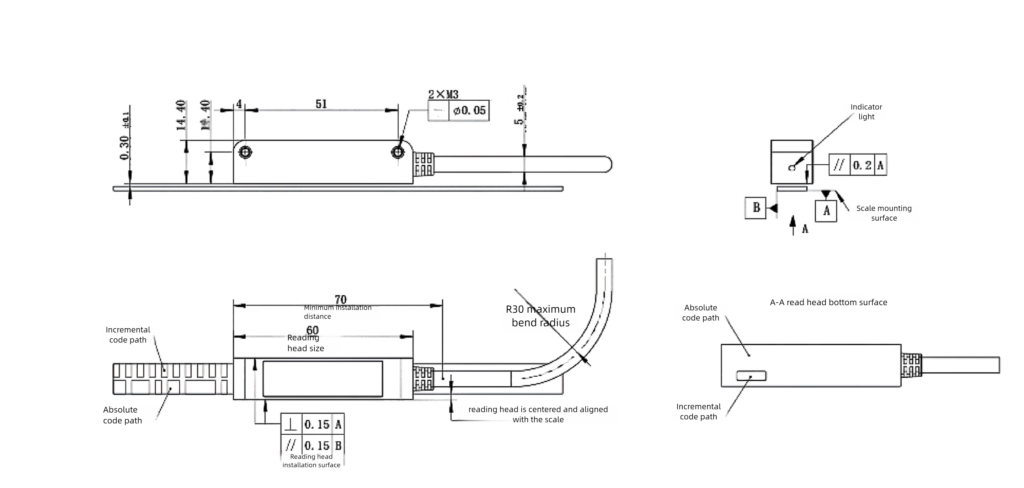

Readhead options and model views

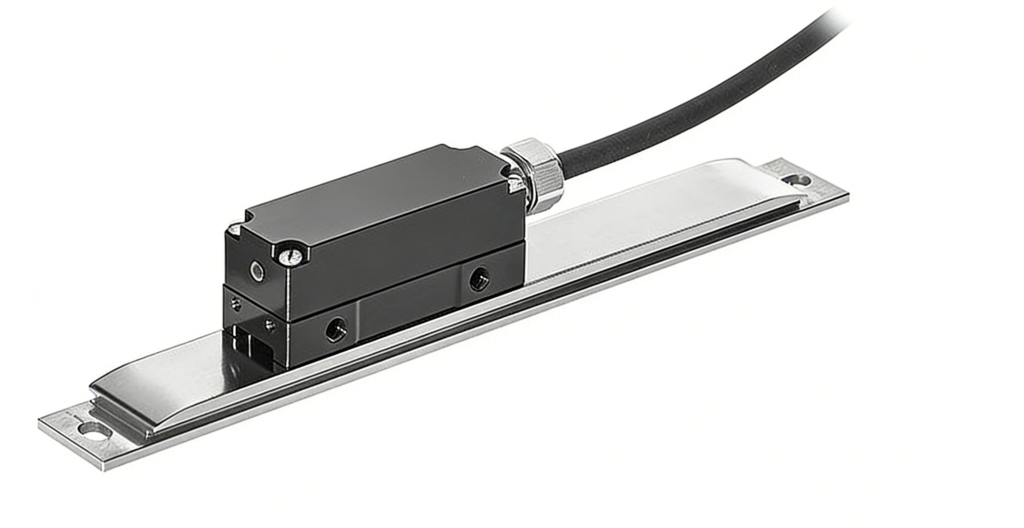

Magnetic linear encoder readhead and scale
OTV AMG5000 absolute magnetic linear encoder
A large installation gap linear absolute encoder-otv sensing.
View all electrical, mechanical and environmental specifications

These absolute magnetic encoder systems provide position feedback after their specified startup time without a reference run. Readhead protection is specified per model; assess connectors, scale mounting and environmental exposure for the complete installation.

Performance Parameter Comparison Table

Specifications depend on the selected model and installation. Confirm the interface and ordering configuration before ordering.
Technical Specification
OTV AL500
Product Type
True Absolute Magnetic Grid Encoder System
True Absolute Linear Magnetic Encoder System
Absolute magnetic encoder for linear or circular motion
Encoding Architecture
Dual-Track Absolute (2 mm pole pitch incremental + binary-coded absolute)
Dual-Track Absolute (5 mm pole pitch incremental + 14-bit PRBS absolute)
Absolute dual-track magnetic scale; MSA50 series, 5 mm magnetic pitch
Readout Sensor Type
Magnetic grid sensing array
AMR sensor array (incremental) + Hall sensor array (absolute)
Absolute magnetic sensing; sensor element not specified
Resolution
Down to 0.1 µm
1 µm
1 µm
Maximum Effective Measurement Length16.384 m (16,384 mm)82 m (82,000 mm)1 m
System Accuracy
±20 µm/m to ±40 µm/m
≤ 50 µm (module and mounting dependent)
—
Repeatability
< 2 µm (< 1 µm unidirectional)
≤ ±2.5 µm (unidirectional @ 1 µm res, 1.2 mm gap)
< 2 µm
Max. Linear Velocity
5 m/s
5 m/s
5 m/s
Position Latency / Update Time
< 62.5 µs
< 6 µs
—
Power-Up Startup Time
< 350 ms
< 400 ms
< 350 ms
Operating Gap (Air Gap)
0.2 – 0.6 mm (0.3 mm recommended spacer)
1.2 ± 0.3 mm (0.2 – 2.0 mm allowable range)
< 1.6 mm; 1.2 mm recommended
Digital Interfaces / Protocols
BiSS-C, SSI, Tamagawa, Panasonic, RS-485
BiSS-C, SSI, Tamagawa, Modbus-RTU, Panasonic
SSI, BiSS-C, Tamagawa, Panasonic, Modbus-RTU
Housing Material
Stainless Steel (Epoxy resin potted)
Anodized Aluminum
Epoxy resin potted; housing material not specified
Environmental Protection
IP67
IP67
IP67
Operating Temperature
-10°C to +55°C
-20°C to +80°C
−5°C to +70°C
Readhead Weight
105 g (with 0.5 m cable & DB9 connector)
Approx. 30 g (without cable)
—
Readhead Dimensions (L×W×H)
Compact body (46 mm screw spacing)
93 × 23 × 11 mm (86 mm screw spacing)
—
Cable Specifications
PUR high-flex, drag-chain compatible, OD 5.0 mm
TPU high-flex, dual-shielded, drag-chain rated (≥ 20M flex cycles), OD 4.4 mm
TPU high-flex, dual-shielded, drag-chain compatible; 4.4 ± 0.15 mm OD
Supply Voltage5 V ±5%5 V ±5%5 V ±5%
Current Consumption150 mA max at 25°C150 mA max at 25°C150 mA max at 25°C
Maximum Cable Length10 m10 m10 m
Cable Lead Length0.5 m standard; customizable0.5 m standard; customizable0.5 m standard; customizable
Cable Output OptionsDirect cable; DB9 or DB15 optionalDirect cable; DB9 or DB15 optionalDirect cable; DB9 or DB15 optional
Scale Compatibilitydual-track absolute magnetic scale; 10 mm widedual-track absolute magnetic scale; 20 mm widedual-track absolute magnetic scale; 20 mm wide
Cable Construction8 conductors; 0.08 mm² (28 AWG); 0.38 Ω/m8 conductors; 0.08 mm² (28 AWG); 0.38 Ω/m8 conductors; 0.08 mm² (28 AWG); 0.38 Ω/m
Cable ShieldingDouble-shielded; 90% coverageDouble-shielded; 90% coverageDouble-shielded; 90% coverage
Cable Flex Life30 million cycles at 35 mm bend radius30 million cycles at 35 mm bend radius30 million cycles at 35 mm bend radius
Cable Bend Radius25 mm dynamic; 10 mm static25 mm dynamic; 10 mm static25 mm dynamic; 10 mm static

Product Selection Summary for Customers

  • Choose the OTV AL200 if you require:
    • Ultra-high resolution down to 0.1 µm for micro-positioning feedback.
    • Higher linear accuracy grades (±20 µm/m).
  • Choose the OTV AMG5000 if you require:
    • Extra-long travel distances up to 82 meters.
    • A wider installation air gap (1.2 mm nominal) allowing for greater mechanical installation tolerances.



Complete systems and custom magnetic scales

At OTV Sensing, we offer complete, standalone magnetic absolute linear encoder solutions, including both the readhead and the precision magnetic scale.

In addition, we also supply custom magnetic scales separately—ideal for system integrators who have already selected an encoder IC or readhead and need a tailored magnetic target. Whether you need a specific pole pitch, a reduced thickness for tight spaces, or a unique length, our team can deliver a magnetic scale that integrates seamlessly with your existing electronics.

Thanks to contact OTV Sensing to discuss your requirements and find the optimal magnetic absolute linear encoder for your motion control system.

Customize the linear encoder for your installation

We understand that every application has unique constraints. OTV Sensing offers extensive customization options to ensure the encoder fits your system perfectly.

ParameterCustomization Options
Measuring LengthSelect the measuring length for the application; catalog maximums are AL200 16.384 m, AMG5000 82 m and AL500 1 m.
Pole Pitch standard 2 mm, 1 mm, 1.5 mm, 5mm, or custom pitches to match specific encoder ICs
Magnetic Scale WidthScale width and track layout depend on the readhead and model. Custom geometry is reviewed with the selected sensing system.
Magnetic MaterialHigh‑performance ferrite rubber; optional stainless steel carrier tape for added stability
Output ProtocolSelect from the model-specific interface options in the specification table. Other interfaces require an engineering feasibility review.
Cable ConfigurationCustom length, shielding options, and exit orientation
Mounting MethodAdhesive backing, mechanical mounting holes, or protective cover tape

From requirements to prototype validation

Encoder performance testing equipment
  1. Requirement Analysis: We work closely with your engineering team to understand your specific needs—measuring length, resolution, accuracy, environmental conditions, and mechanical constraints.

  2. Design & Engineering: Our engineers design the magnetic scale pattern and select appropriate materials to meet your specifications.

  3. Prototyping: Prototype samples are manufactured for your testing and validation.

  4. Production: Full‑scale manufacturing with 100% inspection to ensure quality consistency.

Typical applications

Industrial automation linear position feedback application

Magnetic absolute linear encoders are used across a wide range of industries that demand high precision and reliability:

IndustryApplication Examples
RoboticsCollaborative robots, linear actuators, positioning stages
Industrial AutomationPick‑and‑place machines, automated assembly lines
Machine ToolsCNC machining centers, grinding machines
Medical EquipmentSurgical robots, imaging systems, patient positioning tables
Renewable EnergySolar tracking systems, wind turbine pitch control
Linear MotorsHigh‑speed linear motion stages, direct‑drive systems
Packaging MachineryFilling machines, labeling equipment
Automotive ManufacturingEV battery assembly, test stands

Linear encoder selection FAQ

1. What is the advantage of a magnetic absolute linear encoder over an optical encoder?

Magnetic sensing does not depend on an unobstructed optical path. Assess the selected readhead protection, scale mounting, magnetic interference and the actual oil, coolant or moisture exposure when comparing technologies.

The selected absolute encoder provides its position value after the model-specific startup time, without a reference run. Confirm the specified maximum measurement length and the matching magnetic scale.

We are flexible to discuss volume-based adjustments for prototype or trial orders.

Yes, we can provide custom designsamples for validation. Samples are typically charged at a nominal fee to cover material and setup costs. Lead time for sample building is generally 4 weeks after design confirmation.

Yes. In addition to complete encoder systems, we offer standalone custom magnetic scales. We can tailor the pole pitch, scale width, thickness, measuring length, and track configuration to match your chosen readhead or encoder IC.

SSI and BiSS-C are available in the listed model families. Tamagawa, Panasonic and RS-485 / Modbus-RTU availability depends on the model and ordering configuration. Check the specification table and discuss any other interface requirement with OTV Sensing.

Maximum effective measurement length depends on the model: AL200 supports 16.384 m (16,384 mm), AMG5000 supports travel up to 82 m, and AL500 supports 1 m. Select the actual length required for the application and confirm the matching readhead, scale and ordering configuration.

How absolute magnetic position feedback works

Magnetic sensing technologies: Hall, AMR and TMR

AMR and Hall sensing arrangements for magnetic position feedback
  • AMR (Anisotropic Magneto-Resistive): The sensor operates in saturation mode, typically requiring a magnetic field >300 Gauss. It responds only to the direction of the magnetic field—not its amplitude. This makes the system highly tolerant to variations in air gap and mechanical tolerances during installation.

  • TMR (Tunnel Magneto-Resistive): A newer technology that delivers higher signal output and lower power consumption (up to 50% reduction compared to Hall sensors). It also offers excellent temperature stability, making it ideal for applications where thermal drift must be minimized.

  • Hall Effect: A well-established, cost-effective technology suitable for general industrial applications where high integration and simplicity are priorities.

Example: Nonius absolute encoding

Linear magnetic encoder target with parallel tracks

Absolute position is encoded in the magnetic scale and read by the matched readhead. The selected model determines the track layout, code structure and startup time.

In a Nonius implementation, Master and Nonius tracks have different spatial periods. The sensing electronics compare their phases to determine position within the specified absolute measurement range.

This is one implementation example. Binary-coded and PRBS track layouts are identified separately in the model specification table; the Nonius diagram should not be interpreted as the encoding architecture of every model.

Readhead and magnetic scale components

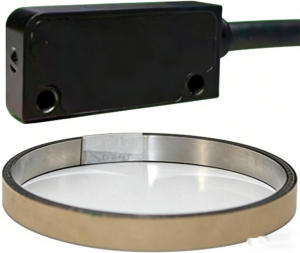

Magnetic linear encoder scale tape
Readhead of linear absolut linear encoder, IP67 protection - OTV sensing

A complete magnetic absolute linear encoder system consists of two primary components:

ComponentDescription

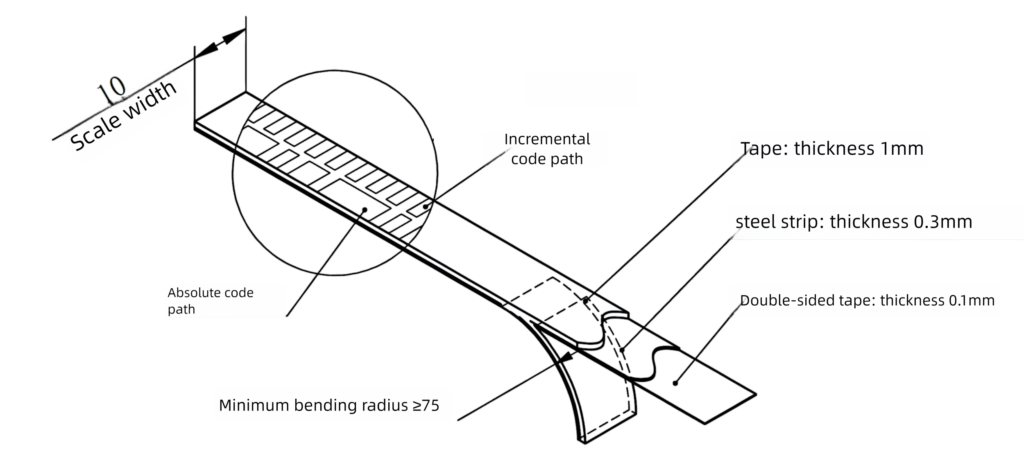

Magnetic ScaleA stainless steel carrier strip coated with bonded ferrite rubber, magnetized with precision pole patterns. Absolute coding and track geometry depend on the selected model: consult the binary, PRBS or Nonius architecture identified in the model specifications.
ReadheadContains the magnetic sensor IC and signal processing electronics. As the readhead moves along the scale, the IC detects field variations and calculates absolute position in real time.
