Product Overview:
The Wireless Bolt Loosening Detection Sensor is a high-precision industrial-grade monitoring device designed to detect the loosening status of critical bolts in real-time. Utilizing advanced MEMS technology, this non-intrusive sensor measures the relative rotation angle between the nut and the bolt to determine fastening integrity. With wireless communication capabilities and a robust, low-power design, it is ideal for deployment in demanding industrial environments.
Key Features:
- Non-Intrusive: No need to modify bolt structure; maintains original mechanical strength.
- High Accuracy: Angular measurement precision within ±0.5°, resolution 0.01°.
- Wireless Transmission: 2.4GHz ISM band with Bluetooth 5.0 support; up to 300m line-of-sight.
- Ultra-Low Power: Built-in 1200mAh replaceable battery; over 10 years of service life.
- Durability: IP67 protection; resistant to water, dust, corrosion, and vibration.
- Remote Monitoring: Real-time alerts, data visualization, and diagnostics via cloud or app.
Technical Specifications:
| Loosening Angle Accuracy | ±0.5° |
| Resolution | 0.01° |
| Key Data Monitored | Bolt loosening angle, measurement index, movement index, attitude index, temperature |
| Data Collection Interval | 2, 5, 10, 15, 20, 30, 60, 120, 240, 360, 480, 720, 1440 minutes; configurable |
| Wireless Communication | 2.4GHz wireless sensor network (Bluetooth 5.0), visual communication distance 300m |
| Battery | 1200mAh Li-SOCl₂ battery; replaceable |

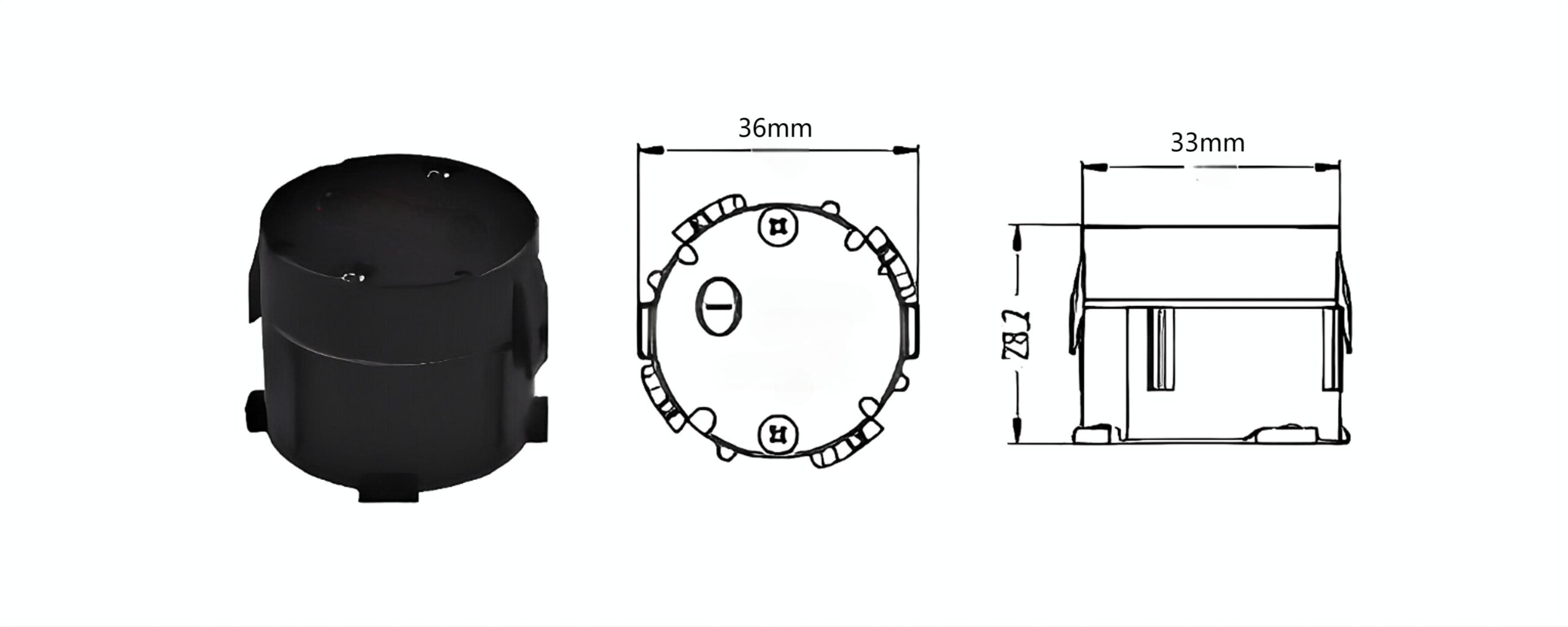

| Dimensions | 36mm × 28.2mm (D × H) |
| Weight | 26g |
| Operating Temperature | -40~85℃ |
| Operating Humidity | 10%~90% RH |
| Housing Material | Weather-resistant engineering plastic |
| Explosion Protection Rating | EX ia IIC T4 Ga |
| Ingress Protection Rating | IP67 |
Application Scenarios:
- Wind turbine blade root bolts
- Steel bridge and rail infrastructure
- Petrochemical pipeline and pressure vessel joints
- Heavy-duty construction equipment
- Transmission tower structural fasteners
System Integration:
Compatible with major SCADA, industrial IoT, and remote monitoring platforms. Offers secure cloud connectivity and supports app-based on-site diagnostics via Bluetooth. API available for integration into custom monitoring dashboards.

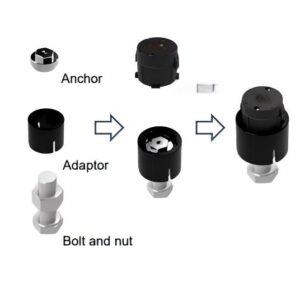

Assembly :
