2 Track nonius encoder discs could work with IC HAUS iC-MU200.
Here is the key dimension:
| Number of pole pairs on master track | Number of pole pairs on Nonius track | ID2 | 0D2 | Diameter of master track | Diameter of Nonius track | Pole width of master track | Pole width of Nonius track |
| 32 | 31 | 25mm | 44.5mm | 40.8mm | 32.8mm | 2mm | 1.66mm |
Magnetic Property:
- Remanence @20°C :160 mT
- Operating temperature range (°C) : -40 to 140

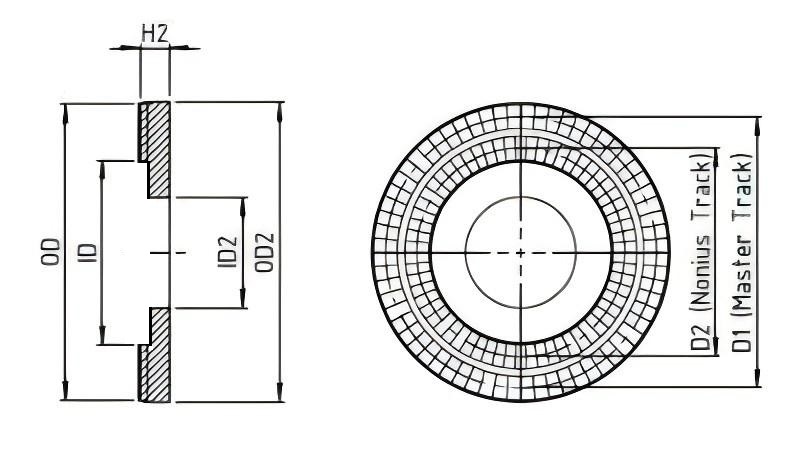

Installation diagram：

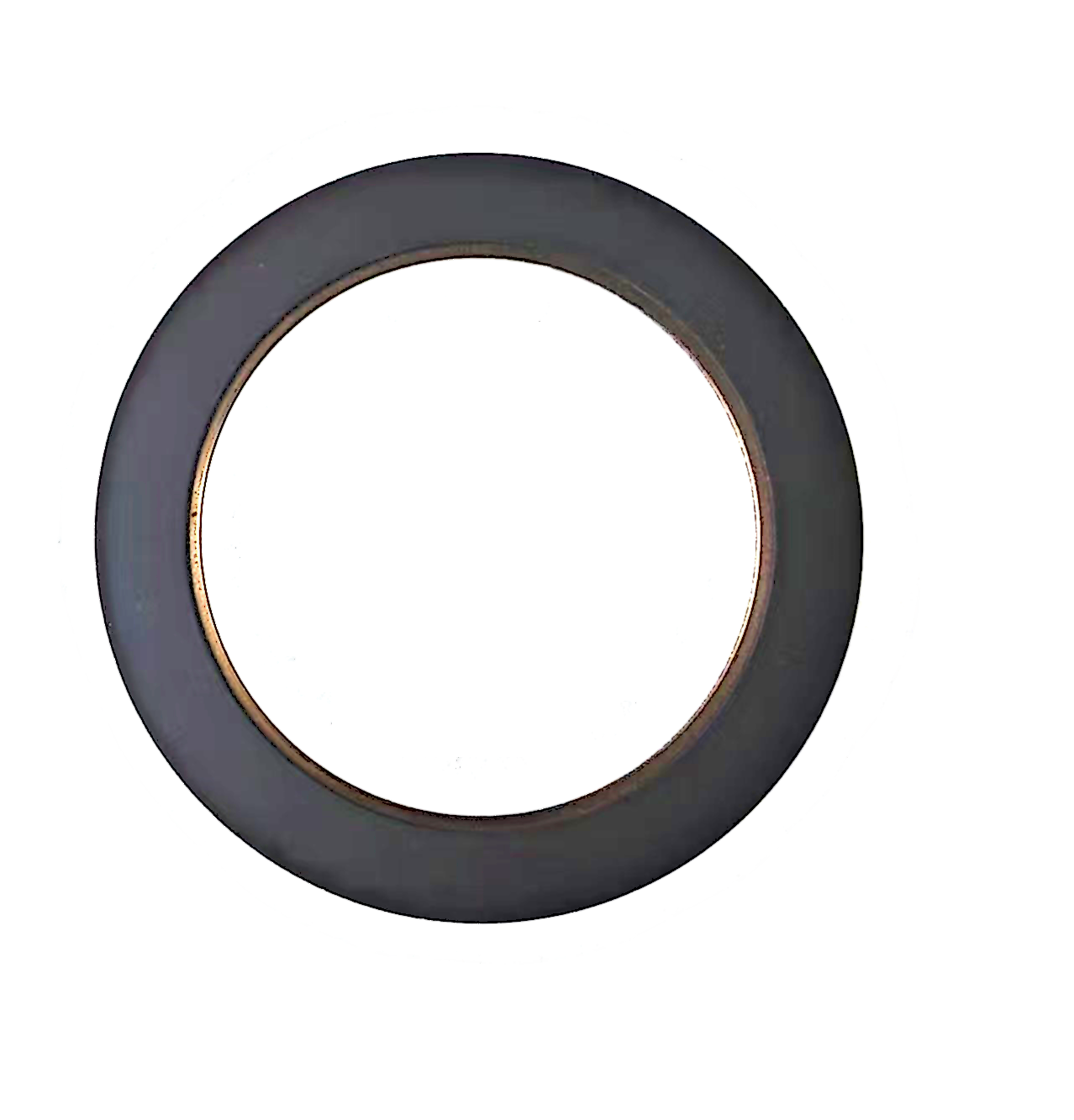

Encoder disc is a multi-pole magnetic ring which is made with ferromagnetic rubber bonded to metal.
Rubber materials mixed with metal oxides have permanent magnetism after high-precision magnetization.
Thanks to contact us for your custom design!
